There are three main layers that make up the

Earth. The main layers are the crust, the

mantle, and the core. These layers vary greatly

in size, composition, temperature, and pressure.

Pressure results from a force pressing on an

area. The deeper down inside the Earth, the

greater the pressure. This is because the heavy

rock above presses down on the center.

The crust is the layer of solid rock that forms the

outside of the Earth. It is solid rock and includes

both dry land and the ocean floor.

The crust is very thin. In most places, the crust

is between 5 and 40 km thick. It is thickest

under mountains and thinnest beneath the ocean.

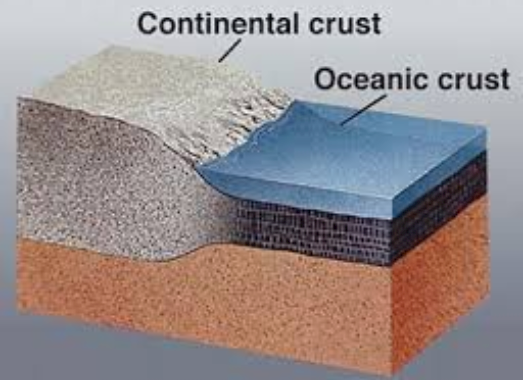

The crust beneath the ocean is called oceanic

crust. It's composition is basalt, which is a dark,

fine-grained rock.

Continental crust, or the crust that forms the

continents, contains many types of rocks. Overall,

it is made of granite. Granite is a light color rock

with coarse grains.

The main elements in basalt and granite are

oxygen and silicon!

The layer below the crust is called the mantle. It is

made of rock that is very hot, but solid. Overall, the

mantle is nearly 3,000 km thick.

The mantle is divided into 3 layers. The lithosphere,

the asthenosphere, and the

mesosphere.

The mantle is mostly made

of iron and magnesium.

It's also 67% of the Earth's

mass

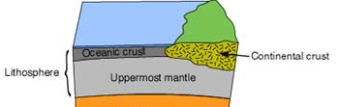

The uppermost part of the mantle is the

lithosphere. It is made of brittle rock. It is solid.

It is similar to the rock of the crust. Because of

this, the crust and the uppermost mantle can be

considered a single layer. It is about 100 km

thick. These two layers make up Earth's tectonic

plates!

Hint: "Litho"

means rock!

Heat

gener

ated

from

the

decay

of

eleme

nts in

the

aesth

enos

phere

create

s

magm

a.

Conve

ction

curren

ts in

the

magm

a

drive

plate

tecton

ics.

Plates

, part

of the

lithos

phere,

Below the lithosphere is the asthenosphere. It

is very hot! The rock is less hard. It's made of

solid rock, but it's much softer.

It bends like a metal spoon, but if you kicked it,

you would still stub your toe! It is 500 km

thick.

There is magma in the asthenosphere. It is made

from the heat created when elements decay.

Plates, part of the lithosphere, are carried along on

top of the asthenosphere as the magma moves

from convection.

heat loss -> convection -> plate motion

This leads to earthquakes and eruptions! We'll

learn more about this later!
